SESD15 Datasheet PDF (High Powered Tvs Array)

SESD15 - High Powered Tvs Array

Download the SESD15 datasheet PDF (SESD03 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high powered tvs array.

Description

The SESDxx and SESDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones,laptop computers and other portable electronics.

These silicon based diodes offer superior clamping voltage and performance compared to other technologies such as MLVs.

Features

>350 Watts Peak Pulse Power per Line (tp=8/20µs) >Protects One Power or I/O Port >Low clamping voltage >Working voltages: 3V, 5V, 8V, 12V, 15V, 24V,36V >Low leakage current.

📥 Download Datasheet

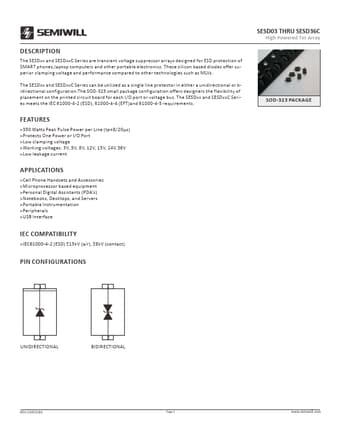

SESD15 high powered tvs array by SEMIWILL - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SESD03-SEMIWILL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SESD15
Manufacturer	SEMIWILL
File Size	120.39 KB
Description	High Powered Tvs Array
Datasheet	SESD15 Datasheet

📁 Similar Datasheet

SESD1004Q4UG-0020-090 - TVS Diode Arrays (Littelfuse)

SESD1103Q6UG-0020-090 - TVS Diode Arrays (Littelfuse)

SESD12 - 110W Transient Voltage Suppressors Diode (SeCoS)

SESD12DW - Surface Mount TVS (WILLAS)

SESD12VWB - ESD Diode (WILLAS)

SESD0201X1BN-0010-098 - TVS Diode Arrays (Littelfuse)

SESD0201X1UN-0020-090 - TVS Diode Arrays (Littelfuse)

SESD03 - 110W Transient Voltage Suppressors Diode (SeCoS)

SESD0402Q2UG-0020-090 - TVS Diode Arrays (Littelfuse)

SESD0402X1BN-0010-098 - TVS DIODE (Leiditech)

Full PDF Text Transcription

Click to expand full text

DESCRIPTION The SESDxx and SESDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones,laptop computers and other portable electronics. These silicon based diodes offer superior clamping voltage and performance compared to other technologies such as MLVs. The SESDxx and SESDxxC Series can be utilized as a single line protector in either a unidirectional or bidirectional configuration.The SOD-323 small package configuration offers designers the flexibility of placement on the printed circuit board for each I/O port or voltage bus. The SESDxx and SESDxxC Series meets the IEC 61000-4-2 (ESD), 61000-4-4 (EFT)and 61000-4-5 requirements.
