P4SMA400CA - TRANSIENT VOLTAGE SUPPRESSORS

Download the P4SMA400CA datasheet PDF. This datasheet also covers the P4SMA6.8A variant, as both devices belong to the same transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

Description

The P4SMA series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4SMA6.8A-SEMIWILL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4SMA400CA
Manufacturer SEMIWILL
File Size 349.34 KB
Description TRANSIENT VOLTAGE SUPPRESSORS
Datasheet download datasheet P4SMA400CA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4SMA400CA 400W Surface Mount Transient Voltage Suppressor TAITRON
P4SMA400CA Transient Voltage Suppression Diodes Littelfuse
P4SMA400CA SMD Transient Voltage Suppressor Diodes Diotec
P4SMA400CA TRANSIENT VOLTAGE SUPPRESSOR GME
P4SMA400CA Surface Mount Transient Voltage Suppressors Diodes JGD

Other Datasheets by SEMIWILL

Part Number Description
P4SMA400A TRANSIENT VOLTAGE SUPPRESSORS
P4SMA43A TRANSIENT VOLTAGE SUPPRESSORS
P4SMA43CA TRANSIENT VOLTAGE SUPPRESSORS
P4SMA440A TRANSIENT VOLTAGE SUPPRESSORS
P4SMA440CA TRANSIENT VOLTAGE SUPPRESSORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

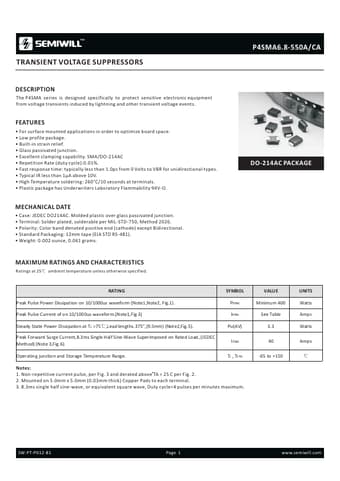

TM TRANSIENT VOLTAGE SUPPRESSORS P4SMA6.8-550A/CA DESCRIPTION The P4SMA series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. FEATURES • For surface mounted applications in order to optimize board space. • Low profile package. • Built-in strain relief. • Glass passivated junction. • Excellent clamping capability. SMA/DO-214AC • Repetition Rate (duty cycle):0.01%. • Fast response time: typically less than 1.0ps from 0 Volts to VBR for unidirectional types. • Typical IR less than 1μA above 10V. • High Temperature soldering: 260°C/10 seconds at terminals. • Plastic package has Underwriters Laboratory Flammability 94V-O. MECHANICAL DATE • Case: JEDEC DO214AC.
