RS3DF, RS3AF Surface Mount Fast Recovery Rectifiers

RS3DF Description

Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 3 A .
1 Cathode 2 Anode 12 Top View Marking Codeļ¼š RS3A-RS3M Simplified outline SMAF and symbol Maximum Ratings and Electrical characteristics Ratings at 25.

RS3DF Applications

* Low profile package
* Glass Passivated Chip Juntion
* Easy to pick and place
* Fast reverse recovery time
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, Method 20

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3DF, RS3AF. Please refer to the document for exact specifications by model.

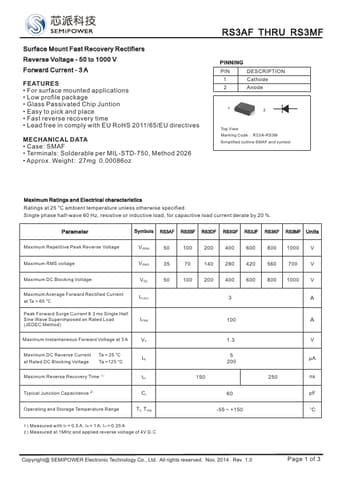

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3DF, RS3AF
Manufacturer
SEMIPOWER
File Size
190.17 KB
Datasheet
RS3AF-SEMIPOWER.pdf
Description
Surface Mount Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS3DF, RS3AF.
Please refer to the document for exact specifications by model.
