BI25-18P, BI25-04P - Power Bridge Rectifiers

BI25-18P Description

BI 25 VRSM, VRRM V 400 800 1200 1600 1800 VVRMS V 280 560 800 1000 1250 ID = 25 A (Tc = 26 °C) Types BI 25-04 P BI 25-08 P BI 25-12 P BI 25-16 P BI.

BI25-18P Features

* Isolated metal case with in-line wire leads
* Ideal for printed circuit boards
* Allow easy heatsink mounting
* Solder temperature: 260°C max. (max. 5 s)
* Blocking voltage up to 1800 V
* High surge current

BI25-18P Applications

* br>
* Rectifier for power supplies
* Input rectifier for variable frequency drives
* Rectifier for DC motor field supplies
* Battery charger rectifiers
* Recommended snubber network: RC: 0.1 μF, 50  (PR = 1 W) 1) Mounted on a 50 x 75 mm p. c. b. 2) Mounted on a painted metal shee

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BI25-18P, BI25-04P. Please refer to the document for exact specifications by model.

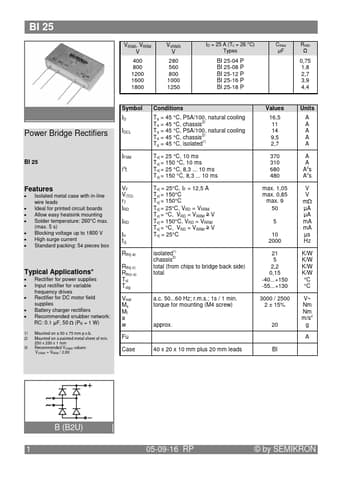

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BI25-18P, BI25-04P
Manufacturer
SEMIKRON
File Size
269.87 KB
Datasheet
BI25-04P-SEMIKRON.pdf
Description
Power Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: BI25-18P, BI25-04P.
Please refer to the document for exact specifications by model.
