SS41FKUA, SS41F Hall Latch Position Sensor

SS41FKUA Description

.
The SS41F is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications.

SS41FKUA Features

* 4.5V to 24V Operation
* -40°C to 150°C Superior temperature operation
* Bipolar technology
* Open-collector 25 mA output
* Reverse battery protection
* Small Size-SOT23 3L or SIP 3L
* Solid-state reliability
* Resistant to physical st

SS41FKUA Applications

* The device integrates a voltage regulator, reverse battery protection diode, Hall sensor with dynamic offset cancellation system, temperature compensation circuitry, small signal amplifier, Schmitt trigger and an open-collector output to sink up to 25 mA. These Hall-effect switches are monolithic i

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS41FKUA, SS41F. Please refer to the document for exact specifications by model.

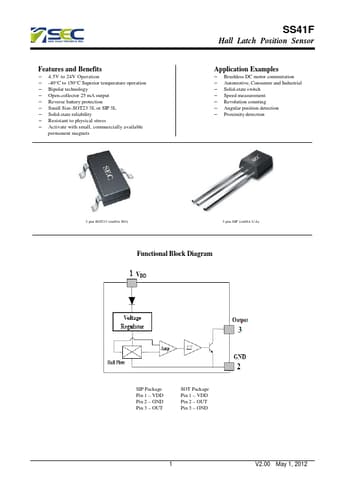

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS41FKUA, SS41F
Manufacturer
SEC
File Size
196.43 KB
Datasheet
SS41F-SEC.pdf
Description
Hall Latch Position Sensor
Note
This datasheet PDF includes multiple part numbers: SS41FKUA, SS41F.
Please refer to the document for exact specifications by model.
