SS2019 Hall Latch Position Sensor

SS2019 Description

SS2019 Hall Latch Position Sensor .
The SS2019 is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications.

SS2019 Features

* 4.5V to 24V Operation
* -40°C to 150°C Superior temperature operation
* Bipolar technology
* Open-collector 25 mA output
* Reverse battery protection
* Small Size SOT23 3L or SIP 3L
* Solid-state reliability
* Resistant to physical st

SS2019 Applications

* The device integrates a voltage regulator, reverse battery protection diode, Hall sensor with dynamic offset cancellation system, temperature compensation circuitry, small signal amplifier, Schmitt trigger and an open-collector output to sink up to 25 mA. These Hall-effect switches are monolithic i

📥 Download Datasheet

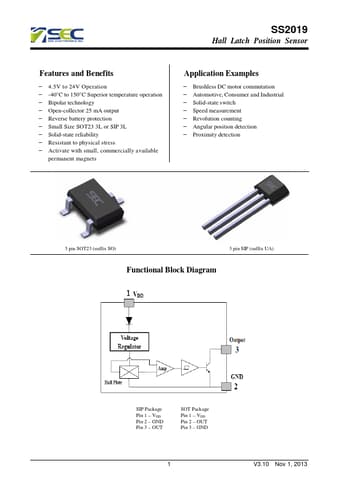

Preview of SS2019 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS2019
Manufacturer
SEC
File Size
298.71 KB
Datasheet
SS2019-SEC.pdf
Description
Hall Latch Position Sensor
