SS1104 Unipolar Hall Switch-Low Sensitivity

SS1104 Description

SS1104 Unipolar Hall Switch-Low Sensitivity .
The SS1104 is a unipolar Hall-effect sensor IC fabricated from CMOS technology.

SS1104 Features

* 3.5V to 24V Operation -40℃ to 150℃ Superior temperature operation CMOS technology Low current consumption Chopper-stabilized amplifier stage Open drain output Low sensitivity Small Size-SOT23 3L or SIP 3L both

SS1104 Applications

* The device is delivered in a Small Outline Transistor (SOT) or in a Plastic Single In Line (SIP 3L flat). Both 3-lead packages are RoHS compliant. Glossary of Terms MilliTesla (mT), RoHS Operating Point (B OP ) Gauss Units of magnetic flux density: 1mT = 10 Gauss Restriction of Hazardous Substance

📥 Download Datasheet

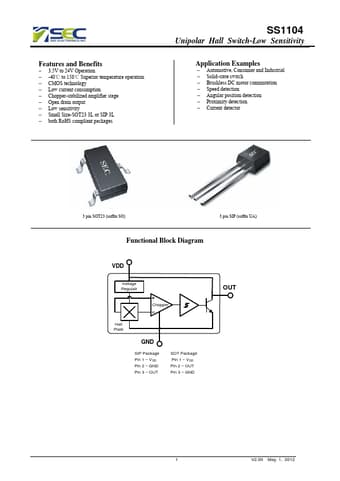

Preview of SS1104 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS1104
Manufacturer
SEC
File Size
321.34 KB
Datasheet
SS1104_SEC.pdf
Description
Unipolar Hall Switch-Low Sensitivity
