SDC11558 Single-Phase Full-Wave Motor Driver

SDC11558 Description

Single-Phase Full-Wave Motor Driver Datasheet SDC11558 General .
The SDC11558 is a single phase full wave motor driver for DC fan motors, and can apply to three type speed control methods.

SDC11558 Features

* Silent driver
* Three speed control methods
* Built-in lock protection and auto restart function
* Low standby current (PWM=0), supply current less than 200uA (Type C only)
* Adjustable fan speed slope (Type B only)
* FG output
* Include hall bias circuit
* Built-in

📥 Download Datasheet

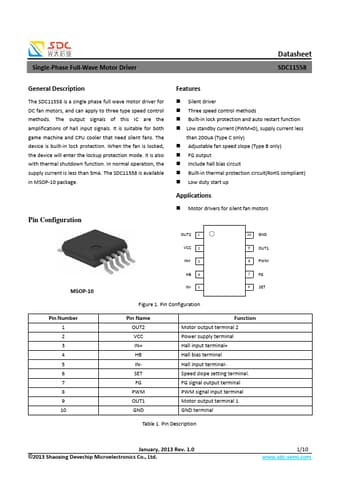

Preview of SDC11558 PDF
