SCT2401 - 600mA Synchronous Step-down DCDC Converter

Description

The SCT2401 is a high frequency, up to 600mA continuous output synchronous buck converter.

It has wide input voltage rating from 4.5V to 40V, which integrates a 600mΩ high-side MOSFET and a 300mΩ low-side MOSFET.

Features

  • Wide Input Range: 4.5V-40V.
  • Up to 600mA Continuous Output Current.
  • 0.81V ± 2.5% Feedback Reference Voltage.
  • Integrated 600mΩ High-Side and 300mΩ Low- Side Power MOSFETs.
  • Fixed Frequency 1.2MHz.
  • Pulse Skipping Mode (PSM) at Light Load.
  • 90uA Quiescent Current in Sleep Mode.
  • 80ns Minimum On-time.
  • 1ms Internal Soft-start Time.
  • Over-Temperature Protection.
  • Available in an TSOT23-6L Package.

📥 Download Datasheet

Datasheet Details

Part number SCT2401
Manufacturer SCT
File Size 1.56 MB
Description 600mA Synchronous Step-down DCDC Converter
Datasheet download datasheet SCT2401 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT2400 2.4GHz Digital Voice and Data Transceiver SICOMM
SCT2450KE N-channel SiC power MOSFET ROHM
SCT2001 2 0mm Pitch Crimp Connector Scondar
SCT2001 3-Channel Constant Constant Driver StarChips
SCT2004 4-Channel High Constant Current Driver StarChips

Other Datasheets by SCT

Part Number Description
SCT2401F 600mA Synchronous Step-down DCDC Converter
SCT2400 600mA Synchronous Step-down DCDC Converter
SCT2430 High Efficiency Synchronous Step-down DCDC Converter
SCT2432 High Efficiency Synchronous Step-down DCDC Converter
SCT2450 High Efficiency Synchronous Step-down DCDC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

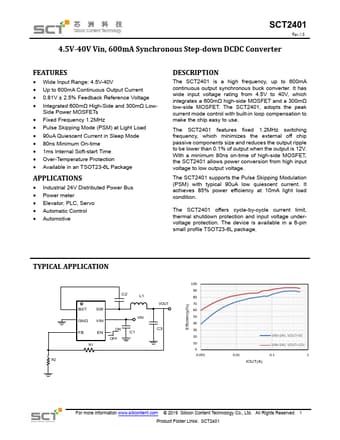

Silicon Content Technology SCT2401 Rev.1.5 4.5V-40V Vin, 600mA Synchronous Step-down DCDC Converter FEATURES  Wide Input Range: 4.5V-40V  Up to 600mA Continuous Output Current  0.81V ± 2.5% Feedback Reference Voltage  Integrated 600mΩ High-Side and 300mΩ Low- Side Power MOSFETs  Fixed Frequency 1.2MHz  Pulse Skipping Mode (PSM) at Light Load  90uA Quiescent Current in Sleep Mode  80ns Minimum On-time  1ms Internal Soft-start Time  Over-Temperature Protection  Available in an TSOT23-6L Package APPLICATIONS  Industrial 24V Distributed Power Bus  Power meter  Elevator, PLC, Servo  Automatic Control  Automotive DESCRIPTION The SCT2401 is a high frequency, up to 600mA continuous output synchronous buck converter. It has wide input voltage rating from 4.
