SCT2400 - 600mA Synchronous Step-down DCDC Converter

Description

The SCT2400 is a high frequency, up to 600mA continuous output synchronous buck converter.

It has wide input voltage rating from 4.5V to 40V, which integrates a 600mΩ high-side MOSFET and a 300mΩ low-side MOSFET.

Features

  • Wide Input Range: 4.5V-40V.
  • Up to 600mA Continuous Output Current.
  • Less than 0.1% Output Ripple at 12V Output.
  • 0.81V ± 2.5% Feedback Reference Voltage.
  • Integrated 600mΩ High-Side and 300mΩ Low- Side Power MOSFETs.
  • Fixed Frequency 2MHz.
  • Pulse Skipping Mode (PSM) at Light Load.
  • 90uA Quiescent Current in Sleep Mode.
  • 80ns Minimum On-time.
  • 1ms Internal Soft-start Time.
  • Over-Temperature Protection.
  • Available in an TSOT23-6 Package.

📥 Download Datasheet

Datasheet Details

Part number SCT2400
Manufacturer SCT
File Size 1.13 MB
Description 600mA Synchronous Step-down DCDC Converter
Datasheet download datasheet SCT2400 Datasheet

📁 Similar Datasheet

  • SCT2400 - 2.4GHz Digital Voice and Data Transceiver (SICOMM)
  • SCT2450KE - N-channel SiC power MOSFET (ROHM)
  • SCT2001 - 2 0mm Pitch Crimp Connector (Scondar)
  • SCT2001 - 3-Channel Constant Constant Driver (StarChips)
  • SCT2004 - 4-Channel High Constant Current Driver (StarChips)
  • SCT2004S - 4-Channel Constant Current Driver (StarChips)
  • SCT2024 - 16-bit Serial-In/Parallel-Out Constant-Current LED Driver (StarChips)
  • SCT2026 - 16-bit Serial-In/Parallel-Out Constant-Current LED Driver (StarChips)
  • SCT2027 - 16-bit Constant-Current LED Driver (StarChips)
  • SCT2080KE - N-channel SiC power MOSFET (ROHM)
Other Datasheets by SCT
  • SCT2401 - 600mA Synchronous Step-down DCDC Converter
  • SCT2401F - 600mA Synchronous Step-down DCDC Converter
  • SCT2430 - High Efficiency Synchronous Step-down DCDC Converter
  • SCT2432 - High Efficiency Synchronous Step-down DCDC Converter
  • SCT2450 - High Efficiency Synchronous Step-down DCDC Converter
  • SCT2452 - High Efficiency Synchronous Step-down DCDC Converter
  • SCT2462 - High Efficiency Synchronous Step-down DCDC Converter
  • SCT2464 - High Efficiency Synchronous Step-down DCDC Converter

Full PDF Text Transcription

Click to expand full text

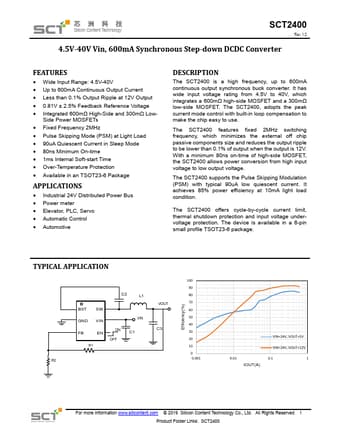

Silicon Content Technology SCT2400 Rev 1.2 4.5V-40V Vin, 600mA Synchronous Step-down DCDC Converter FEATURES  Wide Input Range: 4.5V-40V  Up to 600mA Continuous Output Current  Less than 0.1% Output Ripple at 12V Output  0.81V ± 2.5% Feedback Reference Voltage  Integrated 600mΩ High-Side and 300mΩ Low- Side Power MOSFETs  Fixed Frequency 2MHz  Pulse Skipping Mode (PSM) at Light Load  90uA Quiescent Current in Sleep Mode  80ns Minimum On-time  1ms Internal Soft-start Time  Over-Temperature Protection  Available in an TSOT23-6 Package APPLICATIONS  Industrial 24V Distributed Power Bus  Power meter  Elevator, PLC, Servo  Automatic Control  Automotive DESCRIPTION The SCT2400 is a high frequency, up to 600mA continuous output synchronous buck converter.
