KBPC110 - SILICON BRIDGE RECTIFIERS

Product Overview

📥 Download Datasheet

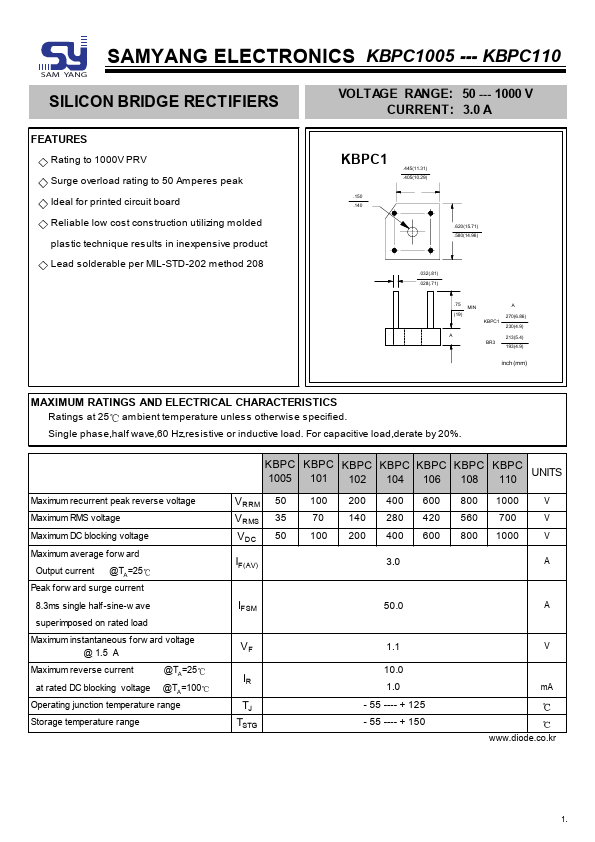

KBPC110 SILICON BRIDGE RECTIFIERS by SAMYANG - Datasheet Preview — Datasheet preview – KBPC110

Datasheet Details

Part number	KBPC110
Manufacturer	SAMYANG
File Size	410.11 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBPC110 Datasheet
Note	This datasheet PDF includes multiple part numbers: KBPC110, KBPC1005. Please refer to the document for exact specifications by model.

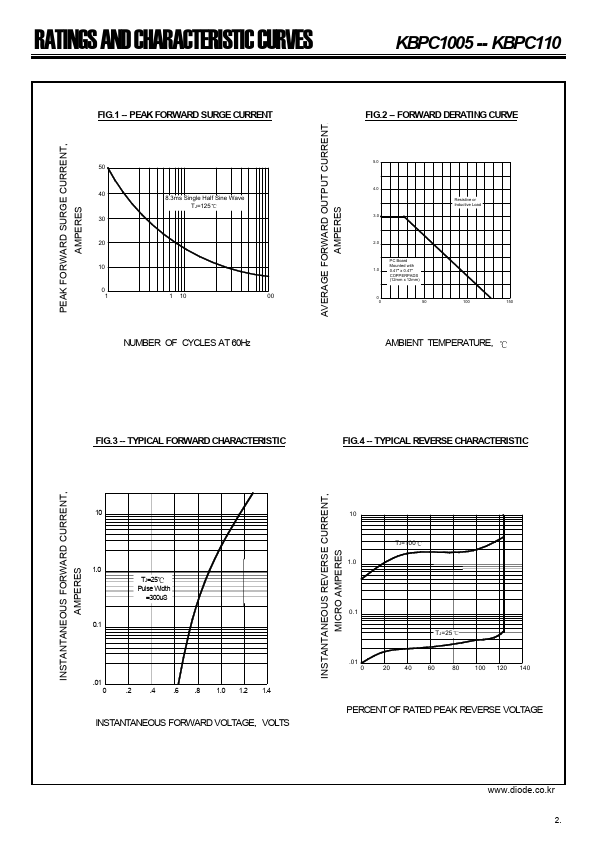

Additional preview pages of the KBPC110 datasheet.

Product details

Features

Rating to 1000V PRV Surge overload rating to 50 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 KBPC1 .150 .140 .445(11.31) .405(10.29) .620(15.71) .580(14.96) .032(.81) .028(.71) .75 MIN (19) A A 270(6.86) KBPC1 230(4.9) 213(5.4) BR3 193(4.9) inch (mm).
