SW12N65 N-channel MOSFET

SW12N65 Description

SAMWIN TO-220F TO-220 SW12N6 5 N-channel MOSFET BVDSS : 650V ID : 12.0A RDS(ON) : 0.8ohm 1 1 3 2 2 3 1 3 .
This power MOSFET is produced with advanced VDMOS technology of SAMWIN.

SW12N65 Features

* High ruggedness
* RDS(ON) (Max 0.8 Ω)@VGS=10V
* Gate Charge (Typ 47nC)
* Improved dv/dt Capability

📥 Download Datasheet

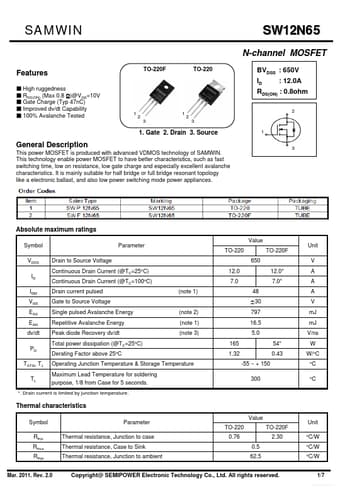

Preview of SW12N65 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW12N65
Manufacturer
SAMWIN
File Size
1.24 MB
Datasheet
SW12N65_SAMWIN.pdf
Description
N-channel MOSFET
