S5L9291X - signal processing LSI

SAMSUNG

S5L9291X Datasheet Preview — Preview of S5L9291X PDF

Datasheet Details

Part number	S5L9291X
Manufacturer	SAMSUNG
File Size	684.68 KB
Description	signal processing LSI
Datasheet	S5L9291X_SAMSUNG.pdf

S5L9291X Product details

Description

Pin No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 Symbol VDDA_PLL VSSA_PLL VCO1LF VCO2LF VSSD_PLL VDDD_PLL PBCK VDDD1 XIN XOUT VSSD1 TEST0 EFMI LOCK SMEF SMON SMDP SMDS WDCK VDDD2 TESTV WFCK LKFS RESETB MLT MDAT MCK ISTAT S0S1 SQCK SQDT VDDD3 VSSD2 I/O O O O I O I I O O O O O O I O O I I I I O I/O I O Analog power for DPLL Analog ground for DPLL Pump out for VCO1 Pump out for VCO2 Digital ground separated bulk bias for DPLL Digital power separated b

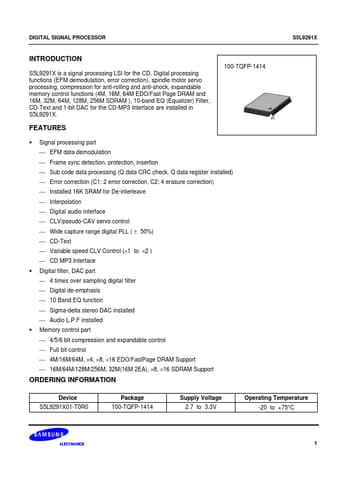

Features

Signal processing part  EFM data demodulation  Frame sync detection, protection, insertion  Sub code data processing (Q data CRC check, Q data register installed)  Error correction (C1: 2 error correction, C2: 4 erasure correction)  Installed 16K SRAM for De-interleave  Interpolation  Digital audio interface  CLV/pseudo-CAV servo control  Wide capture range digital PLL ( ± 50%)  CD-Text  Variable speed CLV Control (×1 to ×2 )  CD MP3 Interface.
Digital filter, DAC.
