SG901-1071 Miniature Wi-Fi Radio

Reference Clock Pins OSC_EN REF_CLK 4 19 Oscillator Enable Output Reference Oscillator Input RF Pins BTH 2G4_RF 13 16 Bluetooth RF Switched Interface Wi-Fi / Bluetooth Antenna Port, 50 ohms Input - Output not normally used * Contact Sagrad for options normally not connected - Contact Sagrad .
www.DataSheet4U.com PRELIMINARY SG901-1071 Miniature Wi-Fi Radio Overview The SG901-1071 Module is a single chip based 802.11b/g/n WLAN radio for embedded, lowpower and extremely small form factor mobile applications. The product conforms to the IEEE 802.11b, g, and n protocols operating in the 2.45GHz ISM frequency band supporting 802.11n modulations up to 72.2Mbps, all OFDM modulations, and all mandatory 802.11b modulations. The SG901-1071 is a fully integrated wireless radio including RF Sy.

SG901-1071 Features

* of the radio are made available. An on-board crystal and filter simplify system integration. Just add one 1.8V regulator, 3.3V Power, Antenna, and host communications. For maximum flexibility, the SG901-1071 can optionally accept a wide range of external reference clock frequencies. Host control is

SG901-1071 Datasheet (804.07 KB)

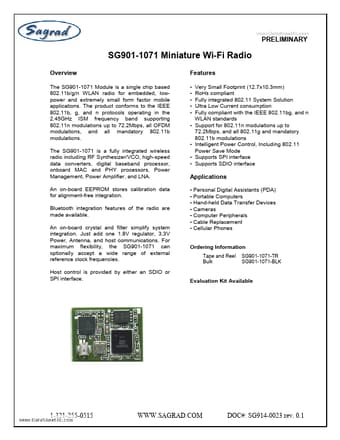

Preview of SG901-1071 PDF
