P6KE6.8CA, P6KE6.8A - Transient Voltage Suppressors Diodes

Name: P6KE6.8CA
SKU: P6KE6.8CA-1189086

Ruilon

The P6KE6.8CA by Ruilon is a Transient Voltage Suppressors Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	P6KE6.8CA, P6KE6.8A
Manufacturer	Ruilon
File Size	517.68 KB
Description	Transient Voltage Suppressors Diodes
Datasheet	P6KE6.8A-Ruilon.pdf
Note	This datasheet PDF includes multiple part numbers: P6KE6.8CA, P6KE6.8A. Please refer to the document for exact specifications by model.

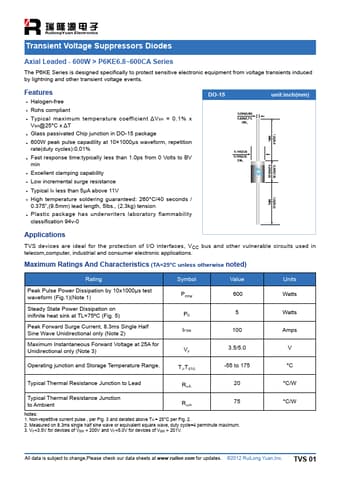

Additional preview pages of the P6KE6.8CA datasheet.

Halogen-free.
Rohs compliant.
Typical maximum temperature coefficient ΔVBR = 0.1% x VBR@25°C x ΔT.
Glass passivated Chip junction in DO-15 package.
600W peak pulse capadility at 10×1000μs waveform, repetition rate(duty cycles):0.01%.
Fast response time:typically less than 1.0ps from 0 Volts to BV min.
Excellent clamping capability.
Low incremental surge resistance.
Typical IR less than 5μA above 11V.
