RUS4510L - High Efficiency Barrier Rectifier

Ruichips

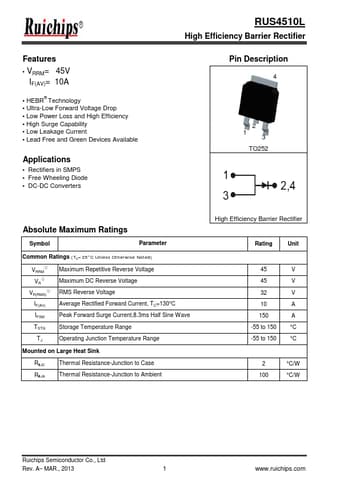

RUS4510L Datasheet Preview — Preview of RUS4510L PDF

Datasheet Details

Part number	RUS4510L
Manufacturer	Ruichips
File Size	243.98 KB
Description	High Efficiency Barrier Rectifier
Datasheet	RUS4510L-Ruichips.pdf

RUS4510L Product details

Description

4 2 1 3 TO252 Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VRRM① VR① VR(RMS)① Maximum Repetitive Reverse Voltage Maximum DC Reverse Voltage RMS Reverse Voltage IF(AV) Average Rectified Forward Current, TC=130°C IFSM Peak Forward Surge Current,8.3ms Half Sine Wave TSTG Storage Temperature Range TJ Operating Junction Temperature Range Mounted on Large Heat Sink RθJC Thermal Resistance-Junction to Case RθJA Thermal Resistance-Junction to Am

Features

VRRM= 45V IF(AV)= 10A.
HEBR® Technology.
Ultra-Low Forward Voltage Drop.
Low Power Loss and High Efficiency.
High Surge Capability.
Low Leakage Current.
Lead Free and Green Devices Available.
