RU80100S - N-Channel Advanced Power MOSFET

Ruichips

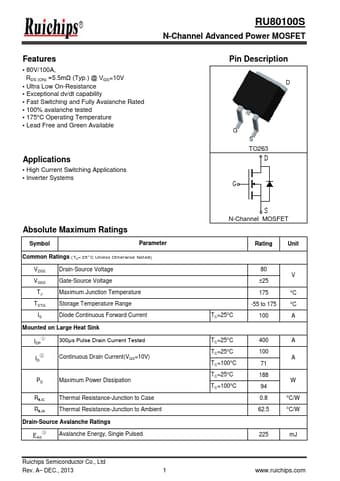

RU80100S Datasheet Preview — Preview of RU80100S PDF

Datasheet Details

Part number	RU80100S
Manufacturer	Ruichips
File Size	308.27 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU80100S-Ruichips.pdf

RU80100S Product details

Description

D G S TO263 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink ① IDP 300μs Pulse Drain Current Tested ② ID Continuous Drain Current(VGS=10V) PD Maximum Power Dissipation RθJC Thermal Resistance-Junction to Case RθJA Thermal Resistance-Junction to Ambient Drain

Features

80V/100A, RDS (ON) =5.5mΩ (Typ. ) @ VGS=10V.
Ultra Low On-Resistance.
Exceptional dv/dt capability.
Fast Switching and Fully Avalanche Rated.
100% avalanche tested.
175°C Operating Temperature.
Lead Free and Green Available.
