RU40150S N-Channel Advanced Power MOSFET

RU40150S Description

RU40150S N-Channel Advanced Power MOSFET MOSFET .
TO-263 Applications. DC-DC Converters and Off-line UPS N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25.

RU40150S Features

* 40V/150A, RDS (ON) =3mΩ(Typ. )@VGS=10V
* Super High Dense Cell Design
* Ultra Low On-Resistance
* 100% avalanche tested

RU40150S Applications

* DC-DC Converters and Off-line UPS N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Fo

📥 Download Datasheet

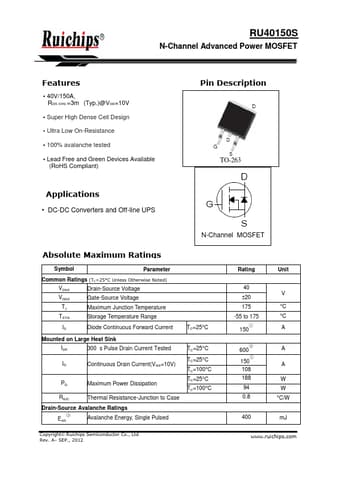

Preview of RU40150S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RU40150S
Manufacturer
Ruichips
File Size
288.92 KB
Datasheet
RU40150S-Ruichips.pdf
Description
N-Channel Advanced Power MOSFET
