RU20C4C6 - Complementary Advanced Power MOSFET

Ruichips

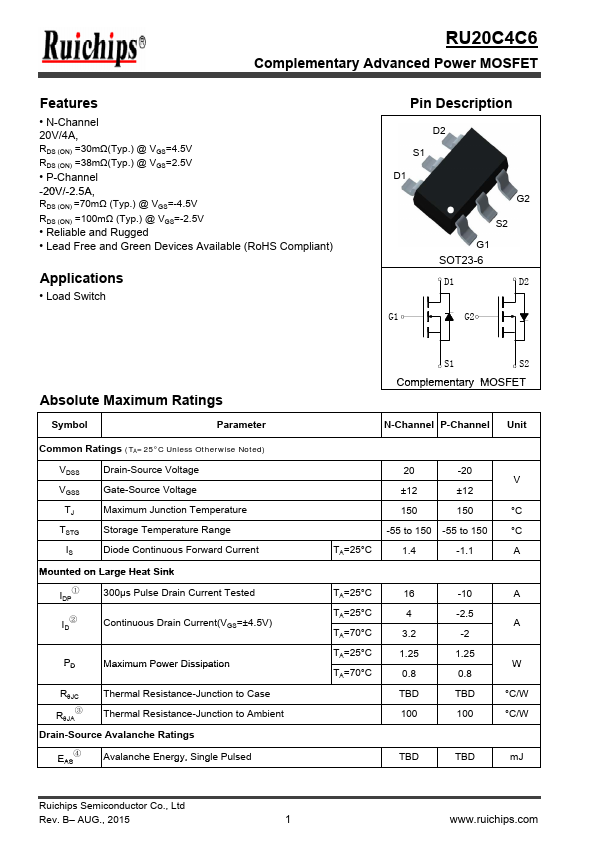

The RU20C4C6 by Ruichips is a Complementary Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

RU20C4C6 Complementary Advanced Power MOSFET by Ruichips - Datasheet Preview — Official preview page of the **RU20C4C6** Complementary Advanced Power MOSFET datasheet (Ruichips).

Datasheet Details

Part number	RU20C4C6
Manufacturer	Ruichips
File Size	379.69 KB
Description	Complementary Advanced Power MOSFET
Datasheet	RU20C4C6-Ruichips.pdf

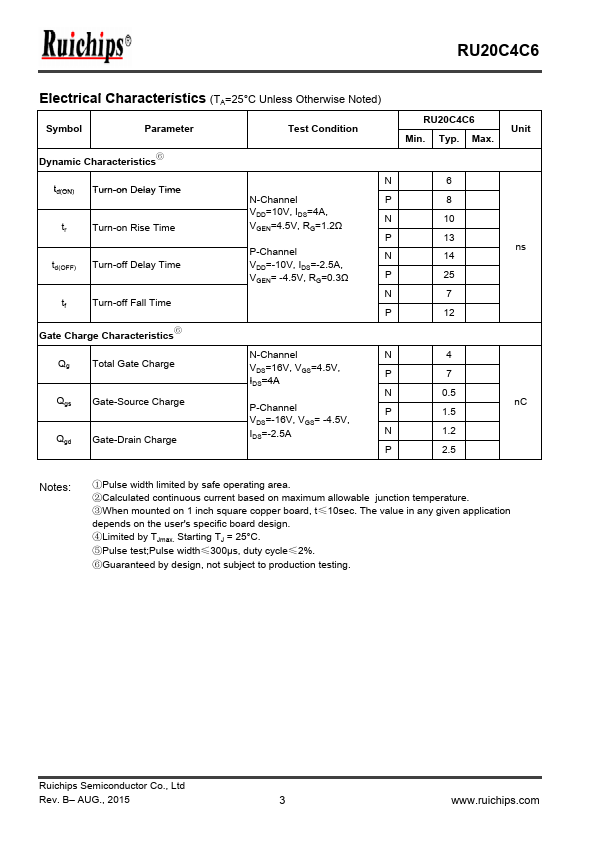

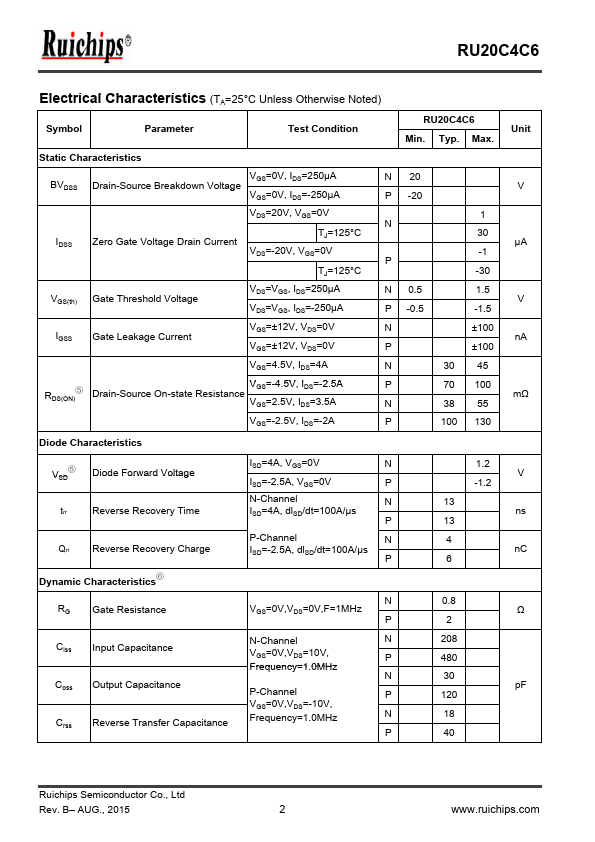

Additional preview pages of the RU20C4C6 datasheet.

RU20C4C6 Product details

Description

D2 S1 D1 G2 S2 G1 SOT23-6 D1 D2 G1 G2 Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS VGSS TJ TSTG IS Drain-Source Voltage Gate-Source Voltage Maximum Junction Temperature Storage Temperature Range Diode Continuous Forward Current Mounted on Large Heat Sink IDP① 300μs Pulse Drain Current Tested ID② Continuous Drain Current(VGS=±4.5V) PD Maximum Power Dissipation RJC Thermal Resistance-Junction to Case RJA③ Thermal Resistance

Features

N-Channel 20V/4A, RDS (ON) =30mΩ(Typ. ) @ VGS=4.5V RDS (ON) =38mΩ(Typ. ) @ VGS=2.5V.
P-Channel -20V/-2.5A, RDS (ON) =70mΩ (Typ. ) @ VGS=-4.5V RDS (ON) =100mΩ (Typ. ) @ VGS=-2.5V.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
