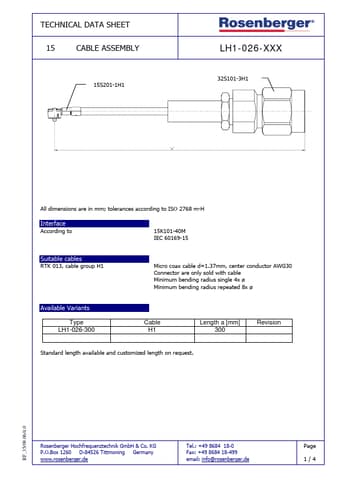

TECHNICAL DATA SHEET 15 CABLE ASSEMBLY
15S201-1H1
LH1-026-XXX
32S101-3H1
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface According to
15K101-40M IEC 60169-15
Suitable cables RTK 013, cable group H1
Micro coax cable d=1.37mm, center conductor AWG30 Connector are only sold with cable Minimum bending radius single 4x ø Minimum bending radius repeated 8x ø
Available Variants
Type LH1-026-300
Cable H1
Length a [mm] 300
Revision
Standard length available and customized length on request.
