LD1625-C120 - Infrared Laser Diode

Roithner

📥 Download Datasheet

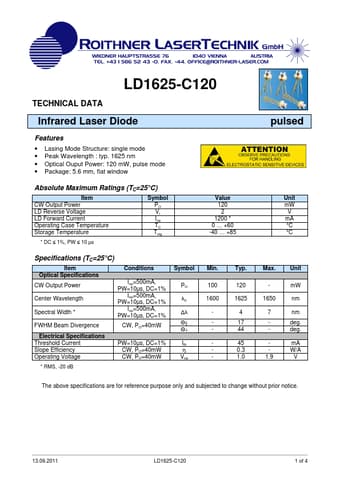

LD1625-C120 Datasheet Preview — Preview of LD1625-C120 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LD1625-C120
Manufacturer	Roithner
File Size	233.96 KB
Description	Infrared Laser Diode
Datasheet	LD1625-C120-Roithner.pdf

LD1625-C120 Product details

Features

Lasing Mode Structure: single mode.
Peak Wavelength : typ. 1625 nm.
Optical Ouput Power: 120 mW, pulse mode.
Package: 5.6 mm, flat window Absolute Maximum Ratings (TC=25°C) Item CW Output Power LD Reverse Voltage LD Forward Current Operating Case Temperature Storage Temperature Symbol PO Vr Iop TC Tstg.
DC ≤ 1%, PW ≤ 10 µs Value 120 2 1200.
0 … +60 -40 … +85 Specifications (TC=25°C) Item Optical Specifications CW Output Power Center Wavelengt.
