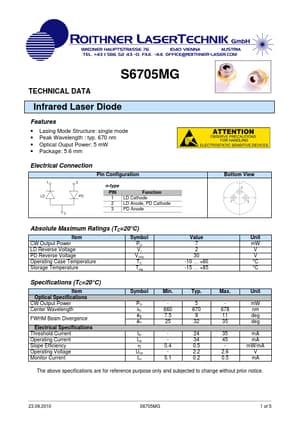

S6705MG - Infrared Laser Diode

Roithner Lasertechnik

Datasheet Details

Part number	S6705MG
Manufacturer	Roithner Lasertechnik
File Size	342.87 KB
Description	Infrared Laser Diode
Datasheet	S6705MG-RoithnerLasertechnik.pdf

Lasing Mode Structure: single mode.
Peak Wavelength : typ. 670 nm.
Optical Ouput Power: 5 mW.
Package: 5.6 mm Electrical Connection Pin Configuration n-type PIN Function 1 LD Cathode 2 LD Anode, PD Cathode 3 PD Anode Bottom View Absolute Maximum Ratings (TC=20°C) Item CW Output Power LD Reverse Voltage PD Reverse Voltage Operating Case Temperature Storage Temperature Symbol PO Vr VrPD TC Tstg Value 7 2 30 -10 … +60 -15 … +85 Unit mW V V °C °C Specifica.
