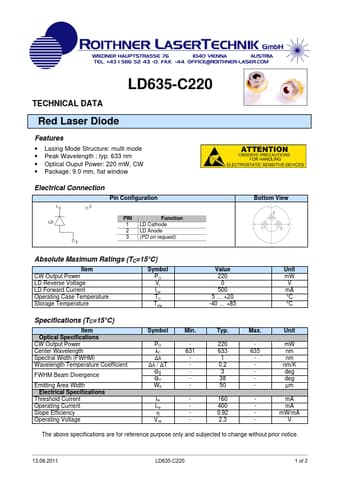

LD635-C220 - Red Laser Diode

Roithner LaserTechnik

Datasheet Details

Part number	LD635-C220
Manufacturer	Roithner LaserTechnik
File Size	129.62 KB
Description	Red Laser Diode
Datasheet	LD635-C220-RoithnerLaserTechnik.pdf

Lasing Mode Structure: multi mode.
Peak Wavelength : typ. 633 nm.
Optical Ouput Power: 220 mW, CW.
Package: 9.0 mm, flat window Electrical Connection Pin Configuration PIN Function 1 LD Cathode 2 LD Anode 3 (PD on request) Bottom View Absolute Maximum Ratings (TC=15°C) Item CW Output Power LD Reverse Voltage LD Forward Current Operating Case Temperature Storage Temperature Symbol PO Vr Iop TC Tstg Value 220 0 500 5 … +20 -40 … +85 Unit mW V mA °C °C Sp.
