SCS206AG SiC Schottky Barrier Diode

SCS206AG Description

SCS206AG SiC Schottky Barrier Diode VR 650V IF 6A QC 9nC *.

SCS206AG Features

* 1) Shorter recovery time 2) Reduced temperature dependence 3) High-speed switching possible

SCS206AG Applications

* PFC Boost Topology Secondary Side Rectification Data Center PV Power Conditioners
* Outline TO-220AC (1) Datasheet (2) (3)
* Inner circuit (1) (1) Cathode (2) Cathode (3) Anode (2) (3)
* Packaging specifications Packaging Tube Reel size (mm) - Tape width (mm) Type Basic ordering u

📥 Download Datasheet

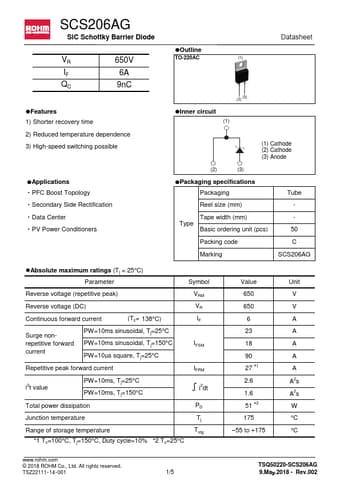

Preview of SCS206AG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCS206AG
Manufacturer
ROHM ↗
File Size
949.43 KB
Datasheet
SCS206AG-Rohm.pdf
Description
SiC Schottky Barrier Diode
