1) Shorter recovery time 2) Reduced temperature dependence 3) High-speed switching possible
lInner circuit
(C)
(A)

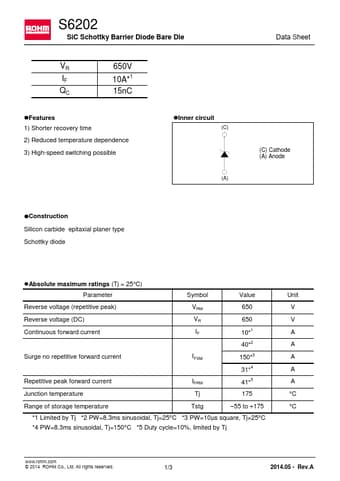

Data Sheet
(C) Cathode (A) Anode
lConstruction Silicon carbide epitaxial planer type Schottky diode
lAbsolute maximum ratings (Tj = 25°C) Parameter
Symbol
Value
Reverse voltage (repetitive peak) Reverse voltage (DC) Continuous forward current
Surge no repetitive forward current
Repetitive peak forward current Junction temperature
VRM 650
VR 650
IF 10.
