RSS120N03 - Transistor

RSS120N03 Description

RSS120N03 Transistors Switching (30V, 12A) RSS120N03 z.

RSS120N03 Features

* 1) Low on-resistance. www. DataSheet4U. com 2) Built-in G-S Protection Diode. 3) Small and Surface Mount Package (SOP8). zExternal dimensions (Unit : mm) SOP8 5.0±0.2 (5) (8) 6.0±0.3 3.9±0.15 1.5±0.1 0.15 zStructure Silicon N-channel MOS FET 1.27 0.4±0.1 0.1 Each lead has same dimensions zAbsolu

RSS120N03 Applications

* Power switching, DC / DC converter. 0.5±0.1 (1) (4) 0.2±0.1 (1) (2) (3) (4) (1)Source (2)Source (3)Source (4)Gate (5)Drain (6)Drain (7)Drain (8)Drain (2) (3) (4) ∗1 ESD PROTECTION DIODE ∗2 BODY DIODE ∗A protection diode is included between the gate and the source terminals to protect the dio

📥 Download Datasheet

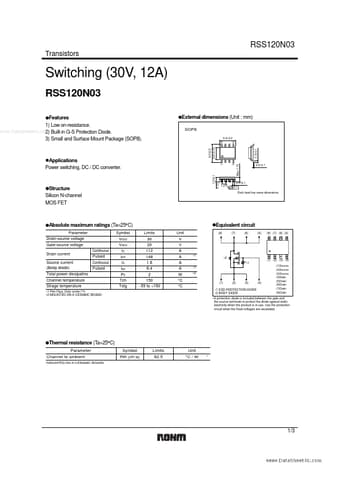

Preview of RSS120N03 PDF
