RFU02VS8S Super Fast Recovery Diode

RFU02VS8S Description

Super Fast Recovery Diode RFU02VS8S Datasheet *Series Ultra Fast Recovery *Dimensions (Unit : mm) 1.3±0.05 0.17±0.1 　　 0.05 *Land s.

RFU02VS8S Features

* 1)Small mold type. (TUMD2S) 2)high switching speed for TUMD2S
* Structure cathode d
* Construction de Silicon epitaxial planer 0.8±0.05 0.6±0.2 ROHM : TUMD2S 　　　 0.1 dot (year week factory) + day
* Taping dimensions (Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.1 　　　　　 0 anode 0.25±0.05

RFU02VS8S Applications

* High frequency rectification

📥 Download Datasheet

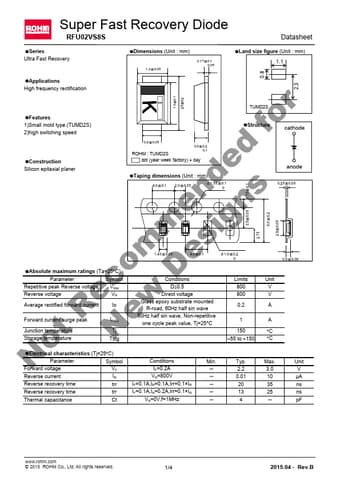

Preview of RFU02VS8S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFU02VS8S
Manufacturer
ROHM ↗
File Size
919.61 KB
Datasheet
RFU02VS8S-Rohm.pdf
Description
Super Fast Recovery Diode
