NF3004-VA20A - Hight Speed Thermal Printhead (300DPI dots / inch)

Rohm

Datasheet Details

Part number	NF3004-VA20A
Manufacturer	ROHM ↗
File Size	75.38 KB
Description	Hight Speed Thermal Printhead (300DPI dots / inch)

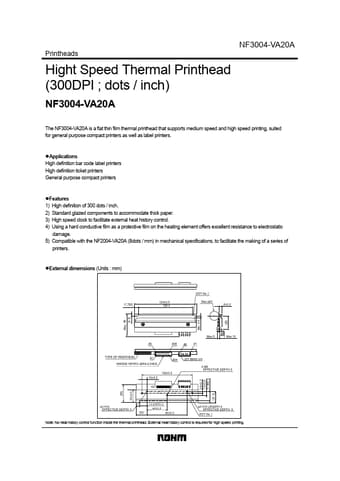

Datasheet	NF3004-VA20A_Rohm.pdf

1) High definition of 300 dots / inch. 2) Standard glazed components to accommodate thick paper. 3) High speed clock to facilitate external heat history control. 4) Using a hard conductive film as a protective film on the heating element offers excellent resistance to electrostatic damage. 5) Compatible with the NF2004-VA20A (8dots / mm) in mechanical specifications, to facilitate the making of a series of printers. !External dimensions (Units : mm) DOT No.1 124±0.5 108.4 Max. φ20 (7.792) 6±0.
