MNR15 - Chip resistor networks

Product Overview

Rohm

Datasheet Details

Part number	MNR15
Manufacturer	ROHM
File Size	412.12 KB
Description	Chip resistor networks
Datasheet	MNR15 Datasheet
Additional preview pages of the MNR15 datasheet.

Product details

Description

MNR 02 MR A P J 105 Part No.MNR (Chip Resistor Networks) Size (mm [inch]) 02 (1005 [0402] × 2) 04 (1005 [0402] × 4) 12 (1608 [0603] × 2) 14 (1608 [0603] × 4) 15 (1608 [0603] × 5) 18 (1605 [0602] × 8) Type Code Resistance Tolerance F ( ±1% ) J (

Features

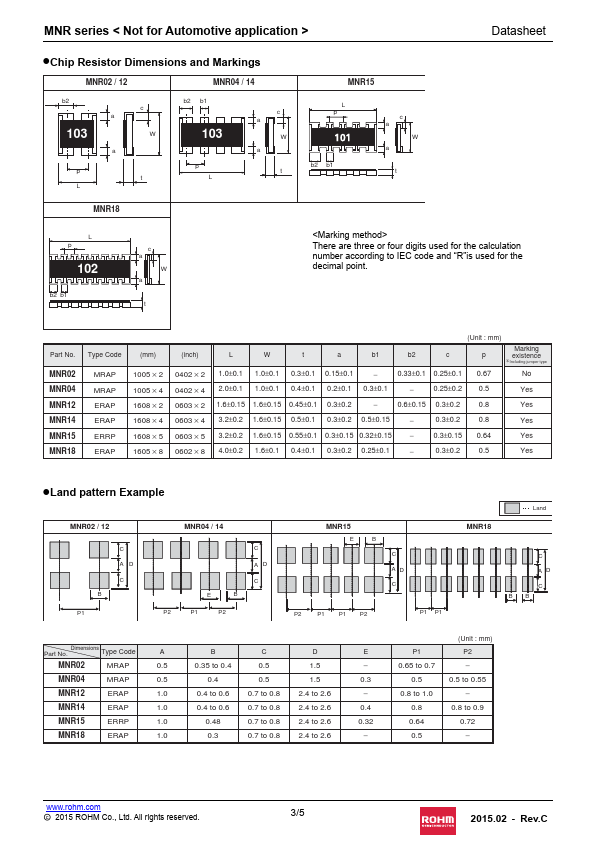

1) Can be mounted even more densely than chip resistors. 2) Convex electrodes secures visual inspection of fillets after soldering. 3) ROHM resistors have obtained ISO9001 / ISO / TS16949 certification. Datasheet Part No. MNR02 MNR04 MNR12 MNR14 MNR15 MNR18 Size (mm) (inch) No. of No. of terminals elements 1005 × 2 0402 × 2 4 2 1005 × 4 0402 × 4 8 4 1608 × 2 0603 × 2 4 2 1608 × 4 0603 × 4 8 4 1608 × 5 0603 × 5 10 8 1605 × 8 0602 × 8 16 8 Type Code MRAP MRAP ERAP.
