MCR100, MCR004 - (MCR Series) Thick Film Chip Resistors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MCR100, MCR004. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MCR100, MCR004
Manufacturer ROHM
File Size 1.00 MB
Description (MCR Series) Thick Film Chip Resistors
Datasheet download datasheet MCR004_Rohm.pdf
Note This datasheet PDF includes multiple part numbers: MCR100, MCR004.
Please refer to the document for exact specifications by model.

MCR100 Product details

Description

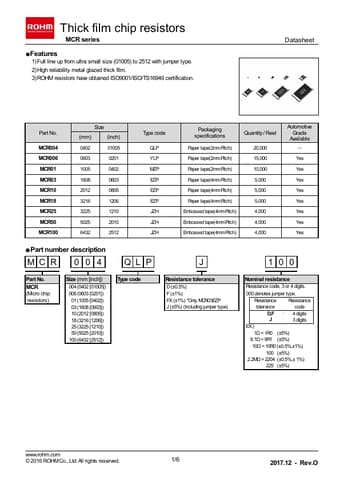

MCR 0 0 4 QL P J 100 Part No.MCR (Micro chip resistors) Size (mm [inch]) 004(0402 [01005]) 006(0603 [0201]) 01(1005 [0402]) 03(1608 [0603]) 10(2012 [0805]) 18(3216 [1206]) 25(3225 [1210]) 50(5025 [2010]) 100(6432 [2512]) Type code Resistance tolerance D (±0.5%) F (±1%) FX (±1%) Only MCR03EZP J (±5%) (Including jumper type) Nominal resistance Resistance code, 3 or 4 digits.000 denotes jumper type.Resistance Resistance tolerance code D,F ： 4 digits J ： 3 digits EX.) 1Ω = 1R
