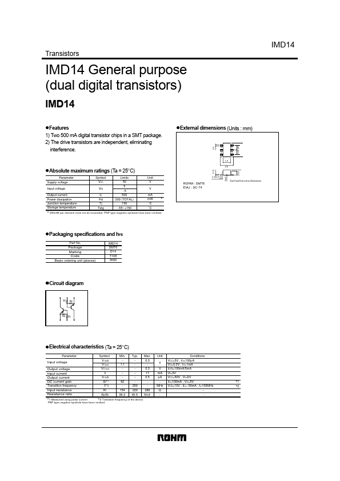

IMD14 - Dual Digital Transistor

Datasheet Details

1) Two 500 mA digital transistor chips in a SMT package. 2) The drive transistors are independent, eliminating interference. !External dimensions (Units : mm) (4) 1.6 2.8 0.15 0.8 0to0.1 !Absolute maximum ratings (Ta = 25°C) Parameter Supply voltage Input voltage Output current Power dissipation Junction temperature Storage temperature Symbol VCC VIN IC Pd Tj Tstg Limits 50 5.
5 500 300 (TOTAL) 150.
55~+150 Unit V V mA mW ˚C ˚C 0.3to0.6 ROHM : SMT6 EIAJ : SC-74 Each lead ha.
