IMB10A - Dual Digital Transistor

Rohm

📥 Download Datasheet

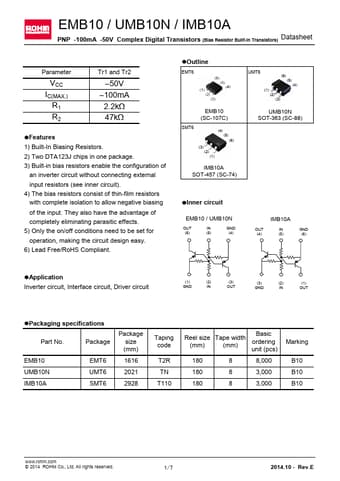

IMB10A Datasheet Preview — Preview of IMB10A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IMB10A
Manufacturer	ROHM
File Size	471.16 KB
Description	Dual Digital Transistor
Datasheet	IMB10A_Rohm.pdf

IMB10A Product details

Features

t-In Biasing Resistors. 2) Two DTA123J chips in one package. 3) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 4) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. 5) Only the on/off conditions need to be set for operation, making the circuit design easy. 6) Lead Free/RoH.
