FMA11A - Dual Digital Transistors

Datasheet Details

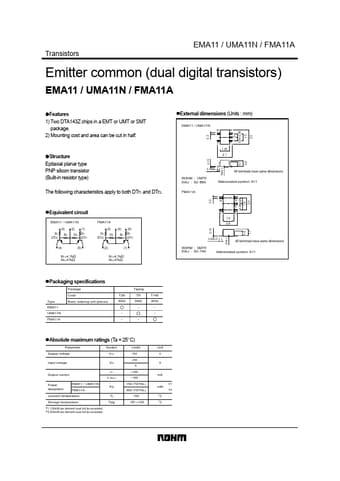

1) Two DTA143Z chips in a EMT or UMT or SMT package. 2) Mounting cost and area can be cut in half. !External dimensions (Units : mm) EMA11 / UMA11N (4) (3) 0.65 0.65 1.3 0.9 0.8 0.2 (5) 1.25 !Structure Epitaxial planar type PNP silicon transistor (Built-in resistor type) The following characteristics apply to both DTr1 and DTr2. 2.1 0.15 (1) 0.1Min. 0to0.1 All terminals have same dimensions ROHM : UMT5 EIAJ : SC-88A FMA11A Abbreviated symbol: A11 0.95 0.95 1.9 0.3 (2) (3) 0.7.
