DTC144TM - Digital transistors

Product Overview

Rohm

Part number	DTC144TM
Manufacturer	ROHM
File Size	1.14 MB
Description	Digital transistors
Datasheet	DTC144TM Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC144TM, DTC144TE. Please refer to the document for exact specifications by model.

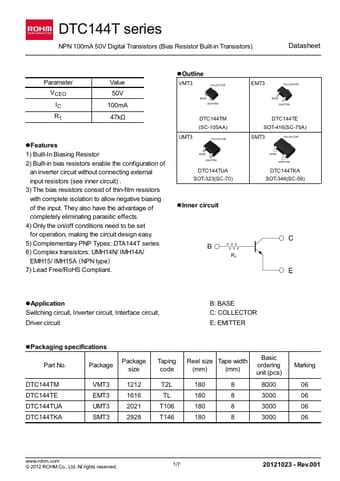

Additional preview pages of the DTC144TM datasheet.

1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing 　of the input. They also have the advantage of 　completely eliminating parasitic effects. 4) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 5) Complementary PNP Types: DTA144T serie.
