DTC115EKA, DTC115EM - NPN 100mA 50V Digital Transistors

Name: DTC115EKA
SKU: DTC115EKA-914203

Rohm

The DTC115EKA by Rohm is a NPN 100mA 50V Digital Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTC115EKA, DTC115EM
Manufacturer	ROHM
File Size	1.98 MB
Description	NPN 100mA 50V Digital Transistors
Datasheet	DTC115EM-Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: DTC115EKA, DTC115EM. Please refer to the document for exact specifications by model.

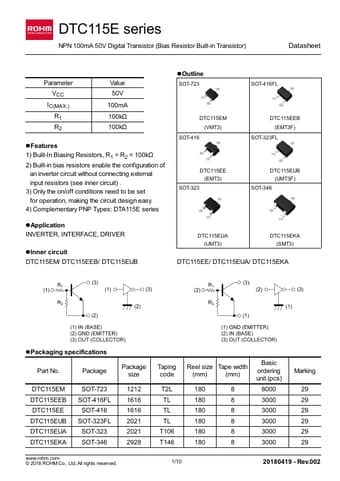

Additional preview pages of the DTC115EKA datasheet.

1) Built-In Biasing Resistors, R1 = R2 = 100kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing 　of the input. They also have the advantage of 　completely eliminating parasitic effects. 4) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 5) Complementary PNP Ty.
