DTC114YKA, DTC114Y - NPN 100mA 50V Digital Transistors

Name: DTC114YKA
SKU: DTC114YKA-915497

Rohm

The DTC114YKA by Rohm is a NPN 100mA 50V Digital Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTC114YKA, DTC114Y
Manufacturer	ROHM
File Size	1.96 MB
Description	NPN 100mA 50V Digital Transistors
Datasheet	DTC114Y-Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: DTC114YKA, DTC114Y. Please refer to the document for exact specifications by model.

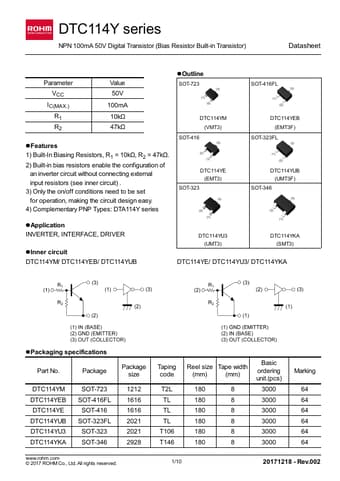

Additional preview pages of the DTC114YKA datasheet.

1) Built-In Biasing Resistors, R1 = 10kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA114Y series lOutline SOT-723 　 DTC114YM (VMT3) SOT-416 　 DTC114YE (EMT3) SOT-323 SOT-416FL 　 DTC114YEB (EMT3F) SOT-323FL 　 DTC114YUB (UMT3F) SOT-346 l.
