DTA115EE - PNP Digital Transistor

Product Overview

Rohm

📥 Download Datasheet

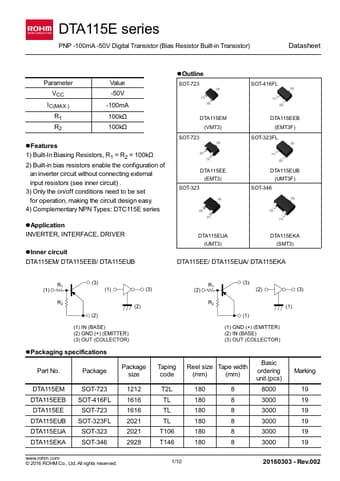

DTA115EE PNP Digital Transistor by Rohm - Datasheet Preview — Datasheet preview – DTA115EE

Datasheet Details

Part number	DTA115EE
Manufacturer	ROHM
File Size	1.94 MB
Description	PNP Digital Transistor
Datasheet	DTA115EE Datasheet
Additional preview pages of the DTA115EE datasheet.

Product details

Features

1) Built-In Biasing Resistors, R1 = R2 = 100kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC115E series l.
