DAN217UM - Switching Diode

Rohm

📥 Download Datasheet

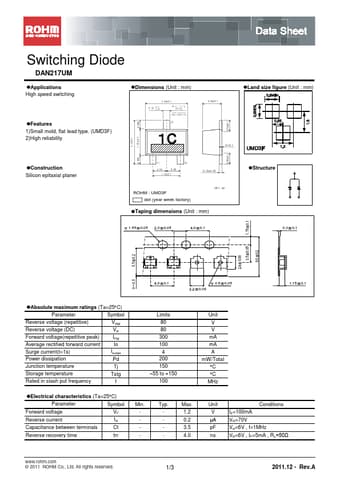

DAN217UM Datasheet Preview — Preview of DAN217UM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAN217UM
Manufacturer	ROHM
File Size	1.24 MB
Description	Switching Diode
Datasheet	DAN217UM_Rohm.pdf

DAN217UM Product details

Features

1)Small mold, flat lead type. (UMD3F) 2)High reliability lConstruction Silicon epitaxial planer 　lStructure ROHM : UMD3F dot (year week factory) lTaping dimensions (Unit : mm) φ 1.55±0.05 2.0±0.05 4.0±0.1 1.75±0.1 0.3±0.1 www. DataSheet. co. kr 3.5±0.05 5.5±0.2 0～0.5 4.0±0.1 2.2±0.08 φ 0.5±0.05 2.4±0.08 8.0±0.2 1.15±0.1 lAbsolute maximum ratings (Ta=25C) Parameter Symbol VRM Reverse voltage (repetitive) VR Reverse voltage (DC) IFM Forward voltage(repetitive peak) Average rectified.
