D2144 - 2SD2144

Features

  • 1) High DC current gain. hFE = 1200 (Typ. ) 2) High emitter-base voltage. VEBO = 12V (Min. ) 3) Low VCE(sat). VCE(sat) = 0.18V (Typ. ) (IC / IB = 500mA / 20mA) FStructure Epitaxial planar type NPN silicon transistor FExternal dimensions (Units: mm) (96-232-C107) www. DataSheet4U. net 232 Transistors FAbsolute maximum ratings (Ta = 25_C) 2SD2114K / 2SD2144S FElectrical characteristics (Ta = 25_C) FPackaging specifications and hFE FElectrical characteristic curves hFE values are classified as.

📥 Download Datasheet

Datasheet Details

Part number D2144
Manufacturer ROHM
File Size 140.06 KB
Description 2SD2144
Datasheet download datasheet D2144 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
D2140 Power Transistor Inchange Semiconductor
D2140D Standard Recovery Diode nELL
D2141 2SD2141 Allegro Micro Systems
D2142 2SD2142 SeCoS
D2147H High Speed 4096 x 1 Bit Static RAM Intel

Other Datasheets by ROHM

Part Number Description
D2143 2SD2143
D2118 2SD2118
D2132 NPN SIlicon Transistor
D2159 2SD2159

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

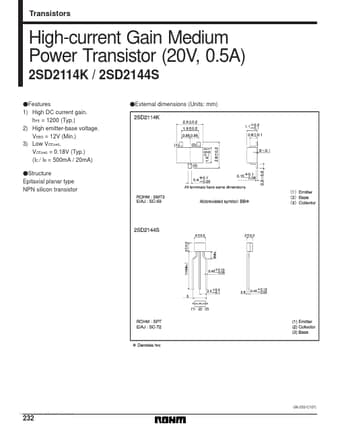

Transistors High-current Gain Medium Power Transistor (20V, 0.5A) 2SD2114K / 2SD2144S FFeatures 1) High DC current gain. hFE = 1200 (Typ.) 2) High emitter-base voltage. VEBO = 12V (Min.) 3) Low VCE(sat). VCE(sat) = 0.18V (Typ.) (IC / IB = 500mA / 20mA) FStructure Epitaxial planar type NPN silicon transistor FExternal dimensions (Units: mm) (96-232-C107) www.DataSheet4U.
