BU9817FV Datasheet (Rohm) - 4-channel temperature sensor IC for PCs with I2C BUS interface

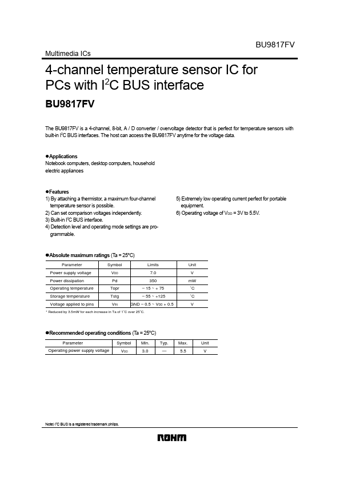

BU9817FV, 4-channel temperature sensor IC for PCs with I2C BUS interface

Pin No.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 Pin name SDA SCL OD1 OD2 OD3 OD4 GND CLK AD4 AD3 AD2 AD1 STOPB VDD I2C BUS Serial Data Line Function I2C BUS Serial Clock Input Open Drain Output 1 Open Drain Output 2 Open Drain Output 3 Open Drain Output 4 Ground Clock for Logic Input Analog-to-Digtal Con

BU9817FV Features

* 1) By attaching a thermistor, a maximum four-channel temperature sensor is possible. 2) Can set comparison voltages independently. 3) Built-in I2C BUS interface. 4) Detection level and operating mode settings are programmable. 5) Extremely low operating current perfect for portable equipment. 6) Op
