BU90R104 - 35bit LVDS Receiver

Name: BU90R104
SKU: BU90R104-787363

Rohm

📥 Download Datasheet

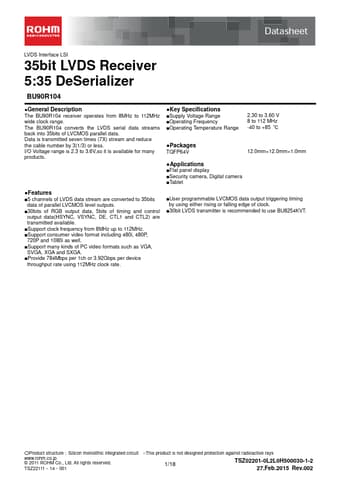

BU90R104 Datasheet Preview — Preview of BU90R104 PDF

Datasheet Details

Part number	BU90R104
Manufacturer	ROHM
File Size	532.81 KB
Description	35bit LVDS Receiver
Datasheet	BU90R104-Rohm.pdf

BU90R104 Product details

Description

The BU90R104 receiver operates from 8MHz to 112MHz wide clock range. Key Specifications Supply Voltage Range Operating Frequency Operating Temperature Range 2.30 to 3.60 V 8 to 112 MHz -40 to +85 ℃ Packages TQFP64V 1

Features

>.
5 channels of LVDS data stream are converted to 35bits data of parallel LVCMOS level outputs.
30bits of RGB output data, 5bits of timing and control output data(HSYNC, VSYNC, DE, CTL1 and CTL2) are transmitted available.
Support clock frequency from 8MHz up to 112MHz.
Support consumer video format including 480i, 480P, 720P and 1080i as well.
Support many kinds of PC video formats such as VGA, SVGA, XGA and SXGA.
Provide 784Mbps per 1ch or 3.92Gbps per device throughpu.
