BU8242F - Cross point mixer

Rohm

📥 Download Datasheet

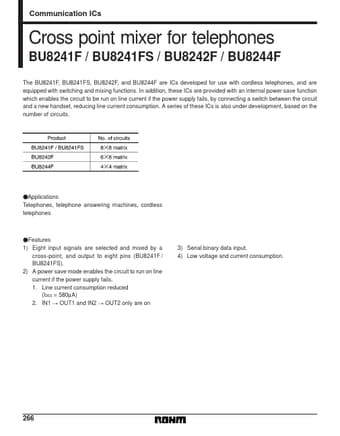

BU8242F Datasheet Preview — Preview of BU8242F PDF

Datasheet Details

Part number	BU8242F
Manufacturer	ROHM
File Size	215.51 KB
Description	Cross point mixer
Datasheet	BU8242F_Rohm.pdf

BU8242F Product details

Description

BU8241F / BU8241FS / BU8242F / BU8244F FInput / output circuits 270 Communication ICs BU8241F / BU8241FS / BU8242F / BU8244F FCircuit operation Sections (1) to (3) below describe operation using the BU8241F and BU8241FS as examples.(1) Analog signals pass through an input amplifier and are supplied to eight switches.The analog input signals are turned on and off by the switches and can thus be directed to any desired output amplifier.Using mixing resistors connected to the outputs of t

Features

1) Eight input signals are selected and mixed by a cross-point, and output to eight pins (BU8241F / BU8241FS). 2) A power save mode enables the circuit to run on line current if the power supply fails. 1. Line current consumption reduced (IDD2 = 580µA) 2. IN1 ! OUT1 and IN2 ! OUT2 only are on 3) Serial binary data input. 4) Low voltage and current consumption. 266 Communication ICs FBlock diagram BU8241F / BU8241FS / BU8242F / BU8244F 267 Communication ICs BU8241F / BU8241FS / BU8242F / B.
