BU52004GUL - Omnipolar Detection Hall

Description

The BU52004GUL and BU52014HFV are bipolar Hall ICs incorporating a polarity determination circuit that enables operation (output) on both the S- and N-poles, with the polarity judgment based on the output processing configuration.

Features

  • 1) Omnipolar detection (polarity detection for both S and N features dual outputs) 2) Micropower operation (small current using intermittent operation method) 3) Ultra-compact CSP4 package(BU52004GUL) 4) Small outline package (BU52014HFV) 5) Line up of supply voltage For 1.8V Power supply voltage (BU52014HFV) For 3.0V Power supply voltage (BU52004GUL) 6) Polarity judgment and output on both poles (OUT1: S-pole output; OUT2: N-pole output) 7) High ESD resistance 8kV(HBM).

📥 Download Datasheet

Datasheet Details

Part number BU52004GUL
Manufacturer ROHM
File Size 490.80 KB
Description Omnipolar Detection Hall
Datasheet download datasheet BU52004GUL Datasheet

📁 Similar Datasheet

  • BU522 - POWER TRANSISTORS (Motorola)
  • BU522 - Silicon Darlington NPN Power Transistor (Inchange Semiconductor)
  • BU522A - POWER TRANSISTORS (Motorola)
  • BU522A - Silicon Darlington NPN Power Transistor (Inchange Semiconductor)
  • BU522B - NPN Transistor (INCHANGE)
  • BU522B - POWER TRANSISTORS (Motorola Inc)
  • BU526 - NPN Transistor (INCHANGE)
  • BU526 - Silicon NPN Transistor (Telefunken)
  • BU526 - SILICON POWER TRANSISTOR (SavantIC)
  • BU526A - NPN Transistor (INCHANGE)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

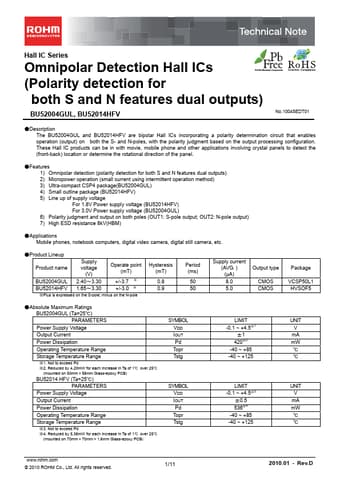

Hall IC Series Omnipolar Detection Hall ICs (Polarity detection for both S and N features dual outputs) BU52004GUL, BU52014HFV No.10045EDT01 ā—¸Description The BU52004GUL and BU52014HFV are bipolar Hall ICs incorporating a polarity determination circuit that enables operation (output) on both the S- and N-poles, with the polarity judgment based on the output processing configuration. These Hall IC products can be in with movie, mobile phone and other applications involving crystal panels to detect the (front-back) location or determine the rotational direction of the panel.
