BU2871FS, BU2878FS
Manufacturer:
File Size:
282.38 KB
Description:
On-screen display.
Note:
This datasheet PDF includes multiple part numbers: BU2871FS, BU2878FS.
Please refer to the document for exact specifications by model.

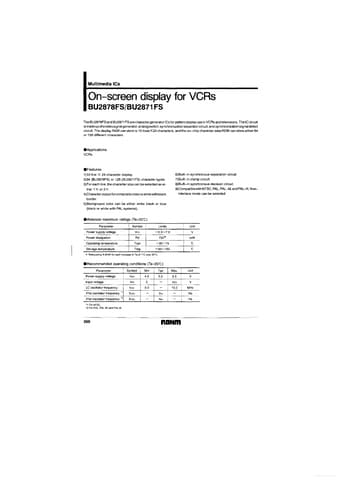

BU2871FS, BU2878FS, On-screen Display
Pin No.
Input/Output 1 Output Pin Name SYDET Function BU2878FS/BU2871 FS The synchronizing signal is used to determine the presence or absence of a video signal, and the result is output on this pin (sync detect).
Pin5 is "L" when a signal is detected, and "H" when no signal is detected.
Clock inp
BU2871FS Features
* 1)10 line X 24 character display. 2)64 (BU2878FS) or 128 (BU2871FS) character types. 3)For each line, the character size can be selected as either 1X or 2 X . 4)Characteroutputfor composite video is white with black border. 5)Background color can be either white black or blue (black or white with PA
