BU21010MUV - Capacitive Sensor Switch Controller

Description

BU21010MUV are the capacitive sensor controller with 8 channels respectively.

Half of sensor ports are available to use to LED driver.

Also gesture function can recognize the short touch, long touch and finger motion.

Features

  • 1) Gesture function 2) LED driver www. DataSheet4U. com 3) 2 wire serial interface 4) Power supply = 2.5V to 3.3V, I/O power supply = 1.7V to 3.3V 5) Integrated 10bit AD converter, clock and reset 6) Package VQFN016V3030.

📥 Download Datasheet

Datasheet Details

Part number BU21010MUV
Manufacturer ROHM
File Size 369.91 KB
Description Capacitive Sensor Switch Controller
Datasheet download datasheet BU21010MUV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BU210 NPN Transistor INCHANGE
BU211 NPN Transistor INCHANGE
BU212 NPN Transistor INCHANGE
BU2152FS 24bit serial/parallel converter IC LSI Computer Systems
BU2006 (BU2006 - BU2010) Enhanced PowerBridge Rectifiers Vishay Siliconix

Other Datasheets by ROHM

Part Number Description
BU21018MWV Capacitive Sensor Controller
BU21008MUV Capacitive Sensor Switch Controller
BU21009MUV Capacitive Sensor Switch Controller
BU21021GUL 4-wire resistive Touch Screen Controller
BU21023GUL Resistive Type Touch Screen Controller

Full PDF Text Transcription

Click to expand full text

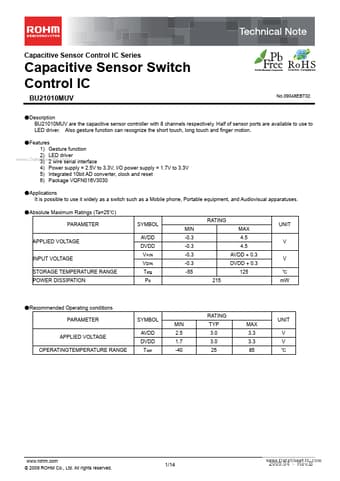

Capacitive Sensor Control IC Series Capacitive Sensor Switch Control IC BU21010MUV No.09048EBT02 ●Description BU21010MUV are the capacitive sensor controller with 8 channels respectively. Half of sensor ports are available to use to LED driver. Also gesture function can recognize the short touch, long touch and finger motion. ●Features 1) Gesture function 2) LED driver www.DataSheet4U.com 3) 2 wire serial interface 4) Power supply = 2.5V to 3.3V, I/O power supply = 1.7V to 3.3V 5) Integrated 10bit AD converter, clock and reset 6) Package VQFN016V3030 ●Applications It is possible to use it widely as a switch such as a Mobile phone, Portable equipment, and Audiovisual apparatuses.
