BRCB032GWZ-3 - WLCSP EEPROM

Name: BRCB032GWZ-3
SKU: BRCB032GWZ-3-1077962

Rohm

The BRCB032GWZ-3 by Rohm is a WLCSP EEPROM. Below is the official datasheet preview.

Datasheet Details

Part number	BRCB032GWZ-3
Manufacturer	ROHM
File Size	525.32 KB
Description	WLCSP EEPROM
Datasheet	BRCB032GWZ-3-Rohm.pdf

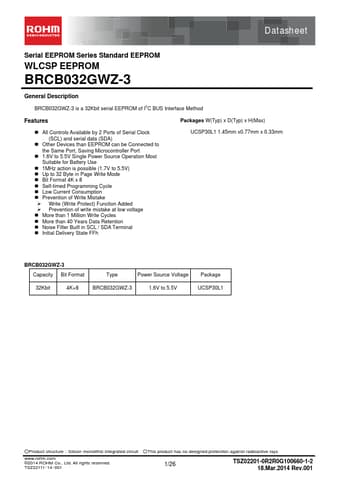

Additional preview pages of the BRCB032GWZ-3 datasheet.

BRCB032GWZ-3 is a 32Kbit serial EEPROM of I2C BUS Interface Method

Packages W(Typ) x D(Typ) x H(Max).
All Controls Available by 2 Ports of Serial Clock (SCL) and serial data (SDA).
Other Devices than EEPROM can be Connected to the Same Port, Saving Microcontroller Port.
1.6V to 5.5V Single Power Source Operation Most Suitable for Battery Use.
1MHz action is possible (1.7V to 5.5V).
Up to 32 Byte in Page Write Mode.
Bit Format 4K x 8.
Self-timed Programming Cycle.
Low Current Consumption.
