BM81110MUW - 12V Input Multi-Channel System Power Supply

Description

BM81110MUW is a system power supply for TFT-LCD panels used for liquid crystal TVs.

This IC is incorporated with Negative and Positive charge pump controllers and Gate Pulse Modulation (GPM) function.

Features

  • built-in EEPROM to contain each setting voltage, soft start time, etc. Features.
  • Step-up DC/DC converter (AVDD) (Synchronous rectification, built-in load switch).
  • Step-down DC/DC converter 1 (VIO) (Non-synchronous rectification).
  • Step-down DC/DC converter 2 (VCORE) (Synchronous rectification).
  • Step-down DC/DC converter 3 (HAVDD) (Synchronous rectification).
  • Positive charge pump controller (VGH).
  • Negative charge pump controller (VGL).
  • Gate Pulse Modulation (GPM.

📥 Download Datasheet

Datasheet Details

Part number BM81110MUW
Manufacturer ROHM
File Size 2.38 MB
Description 12V Input Multi-Channel System Power Supply
Datasheet download datasheet BM81110MUW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BM810 Reset IC BYD
BM810 Mono Solution Module Sunitec
BM81SPK02NB6 Bluetooth 3.0 EDR Wireless Speaker Module ISSC
BM8-xx Silicon Bipolar MMIC Frequency Converter Bipolarics
BM8036 4-channel Microprocessor ETC

Other Datasheets by ROHM

Part Number Description
BM81004MUV 12V Input Multi-Channel System Power Supply
BM81006MWW I2C Control Multi-channel System Power Supply IC
BM81028AMWV Multi-Channel System Power Supply IC
BM81810MUF-M Automotive Panel Power Management
BM81810MUV-M Automotive Panel Power Management

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

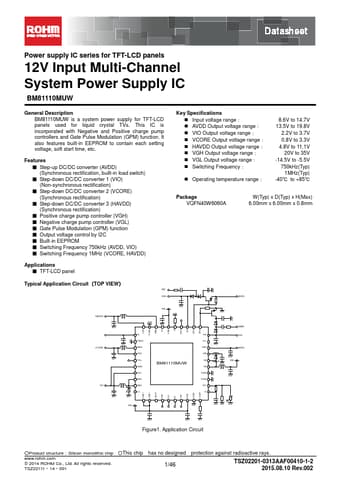

Datasheet Power supply IC series for TFT-LCD panels 12V Input Multi-Channel System Power Supply IC BM81110MUW General Description BM81110MUW is a system power supply for TFT-LCD panels used for liquid crystal TVs. This IC is incorporated with Negative and Positive charge pump controllers and Gate Pulse Modulation (GPM) function. It also features built-in EEPROM to contain each setting voltage, soft start time, etc.
