BM81028AMWV - Multi-Channel System Power Supply IC

Description

BM81028AMWV is a system power supply IC for TFT-LCD panels which are used in monitors, notebook type displays, and tablets.

This IC incorporates HAVDD, VCOM amplifier in addition to the power supply for panel driver (SOURCE, GATE, and LOGIC power supplies).

Features

  • Input voltage range: 2.7V to 5.5V.
  • Standby current: 1.4μA (Typ).
  • Operating temperature range: -40℃ to +85℃.
  • Step-down DC/DC converter 2-channels (Synchronous rectification).
  • Step-up DC/DC converter (Integrated load switch and Synchronous rectification).
  • HAVDD amplifier (8bit Resolution).
  • VCOM amplifier (8bit Resolution).
  • Positive charge pump (Integrated diode).
  • Negative charge pump.

📥 Download Datasheet

Datasheet Details

Part number BM81028AMWV
Manufacturer ROHM
File Size 1.75 MB
Description Multi-Channel System Power Supply IC
Datasheet download datasheet BM81028AMWV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BM810 Reset IC BYD
BM810 Mono Solution Module Sunitec
BM81SPK02NB6 Bluetooth 3.0 EDR Wireless Speaker Module ISSC
BM8-xx Silicon Bipolar MMIC Frequency Converter Bipolarics
BM8036 4-channel Microprocessor ETC

Other Datasheets by ROHM

Part Number Description
BM81004MUV 12V Input Multi-Channel System Power Supply
BM81006MWW I2C Control Multi-channel System Power Supply IC
BM81110MUW 12V Input Multi-Channel System Power Supply
BM81810MUF-M Automotive Panel Power Management
BM81810MUV-M Automotive Panel Power Management

Full PDF Text Transcription

Click to expand full text

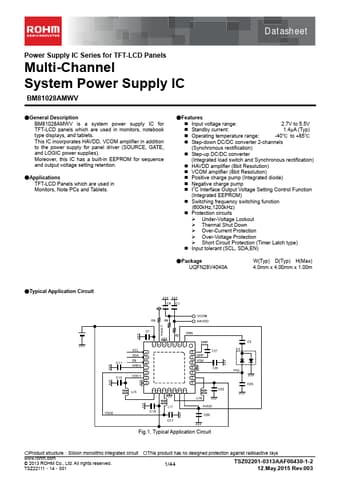

Datasheet Power Supply IC Series for TFT-LCD Panels Multi-Channel System Power Supply IC BM81028AMWV ●General Description BM81028AMWV is a system power supply IC for TFT-LCD panels which are used in monitors, notebook type displays, and tablets. This IC incorporates HAVDD, VCOM amplifier in addition to the power supply for panel driver (SOURCE, GATE, and LOGIC power supplies). Moreover, this IC has a built-in EEPROM for sequence and output voltage setting retention. ●Applications TFT-LCD Panels which are used in Monitors, Note PCs and Tablets. ●Features  Input voltage range: 2.7V to 5.5V  Standby current: 1.
