BH7824FVM - 1.1W to1.5W Monaural Speaker Amplifiers

Name: BH7824FVM
SKU: BH7824FVM-680558

Rohm

📥 Download Datasheet

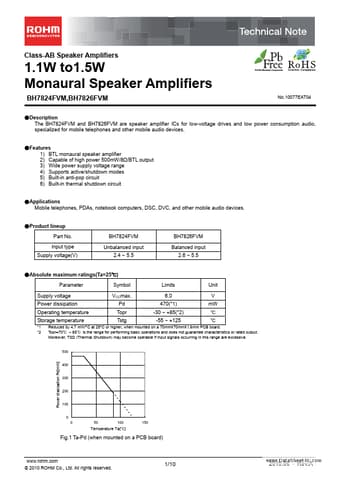

BH7824FVM Datasheet Preview — Preview of BH7824FVM PDF

Datasheet Details

Part number	BH7824FVM
Manufacturer	ROHM
File Size	314.09 KB
Description	1.1W to1.5W Monaural Speaker Amplifiers
Datasheet	BH7824FVM_Rohm.pdf

BH7824FVM Product details

Description

The BH7824FVM and BH7826FVM are speaker amplifier ICs for low-voltage drives and low power consumption audio, specialized for mobile telephones and other mobile audio devices.

Features

1) BTL monaural speaker amplifier 2) Capable of high power 500mW/8Ω/BTL output 3) Wide power supply voltage range 4) Supports active/shutdown modes 5) Built-in anti-pop circuit 6) Built-in thermal shutdown circuit.
