BH76806FVM - Output Capacitor-less Video Drivers

Description

The BH768xxFVM series video drivers are the optimum solution for high density integration systems such as, digital still cameras, mobile phones, and portable video devices.

A built-in charge pump circuit eliminates the need for a large output coupling capacitor.

Features

  • 1) Select from four video driver amp gain settings: 6 dB, 9 dB, 12 dB, and 16.5 dB 2) Large-output video driver with maximum output voltage of 5.2 VP-P Supports wide and low-voltage operation range. 3) No output coupling capacitor is needed, which makes for a more compact design 4) Built-in standby function sets circuit current to 0 µA (typ. ) during standby mode 5) Clear image reproduction by on-chip 8-order 4.5-MHz LPF (Low Pass Filter) 6) Bias input method is used to support chroma, video, and.

📥 Download Datasheet

Datasheet Details

Part number BH76806FVM
Manufacturer ROHM
File Size 496.27 KB
Description Output Capacitor-less Video Drivers
Datasheet download datasheet BH76806FVM Datasheet

📁 Similar Datasheet

Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

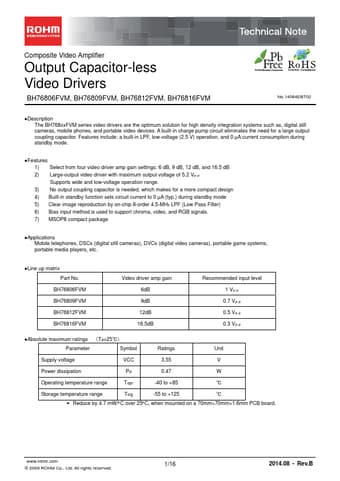

Composite Video Amplifier Output Capacitor-less Video Drivers BH76806FVM, BH76809FVM, BH76812FVM, BH76816FVM No.14064EBT02 ●Description The BH768xxFVM series video drivers are the optimum solution for high density integration systems such as, digital still cameras, mobile phones, and portable video devices. A built-in charge pump circuit eliminates the need for a large output coupling capacitor. Features include: a built-in LPF, low-voltage (2.5 V) operation, and 0 µA current consumption during standby mode. ●Features 1) Select from four video driver amp gain settings: 6 dB, 9 dB, 12 dB, and 16.5 dB 2) Large-output video driver with maximum output voltage of 5.2 VP-P Supports wide and low-voltage operation range.
